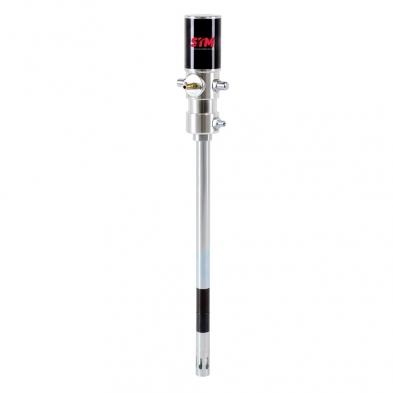

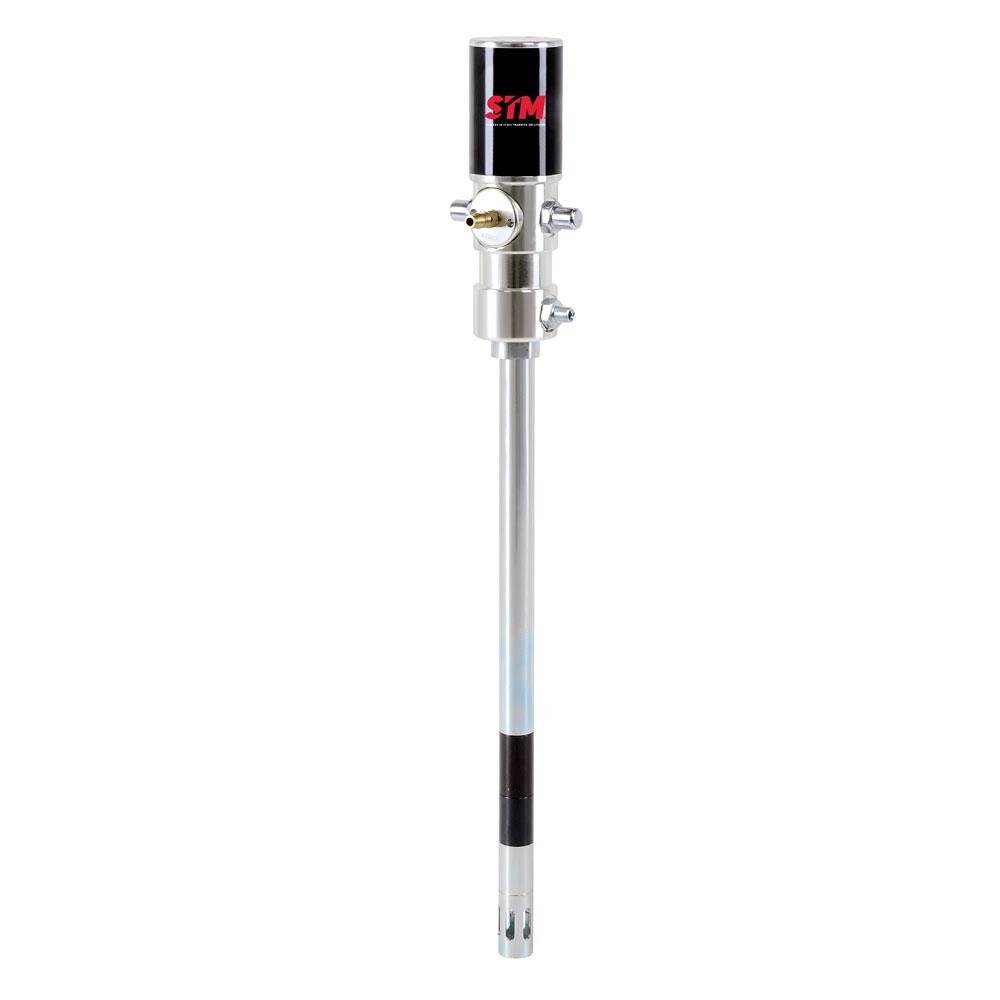

50:1 Air Operated Grease Pumps

  • Suitable for high pressure grease dispensing
  • For dispensing grease of all types short and long distances at high pressure
  • Non-corrosive design for long life
  • Compatible with integrated lubrication systems
  • Compatible with different sizes of grease drums in the market
  • Lubricator included (DITIBL2000)

Specifications

Specifications

MODEL

DITI1701501

DITI1701502

DITI1701503

Drum Application

20 Kg

60 Kg

 180 Kg

Pressure Ratio

50:1

50:1

 50:1

Air Intlet Pressure

70 - 115psi

70 - 115psi

 70 - 115psi

Working Pressure

400bar

400bar

 400bar

Max. Free Flow Rate

800g/min

800g/min

 800g/min

Suction Tube Diameter

 30mm 30mm 30mm
Suction Tube Length

480mm

 740mm 940mm

Air Inlet Connetion

 ¼" BSP Female ¼" BSP Female ¼" BSP Female

Grease outlet Connection

 ¼"BSP Male  ¼"BSP Male  ¼"BSP Male
