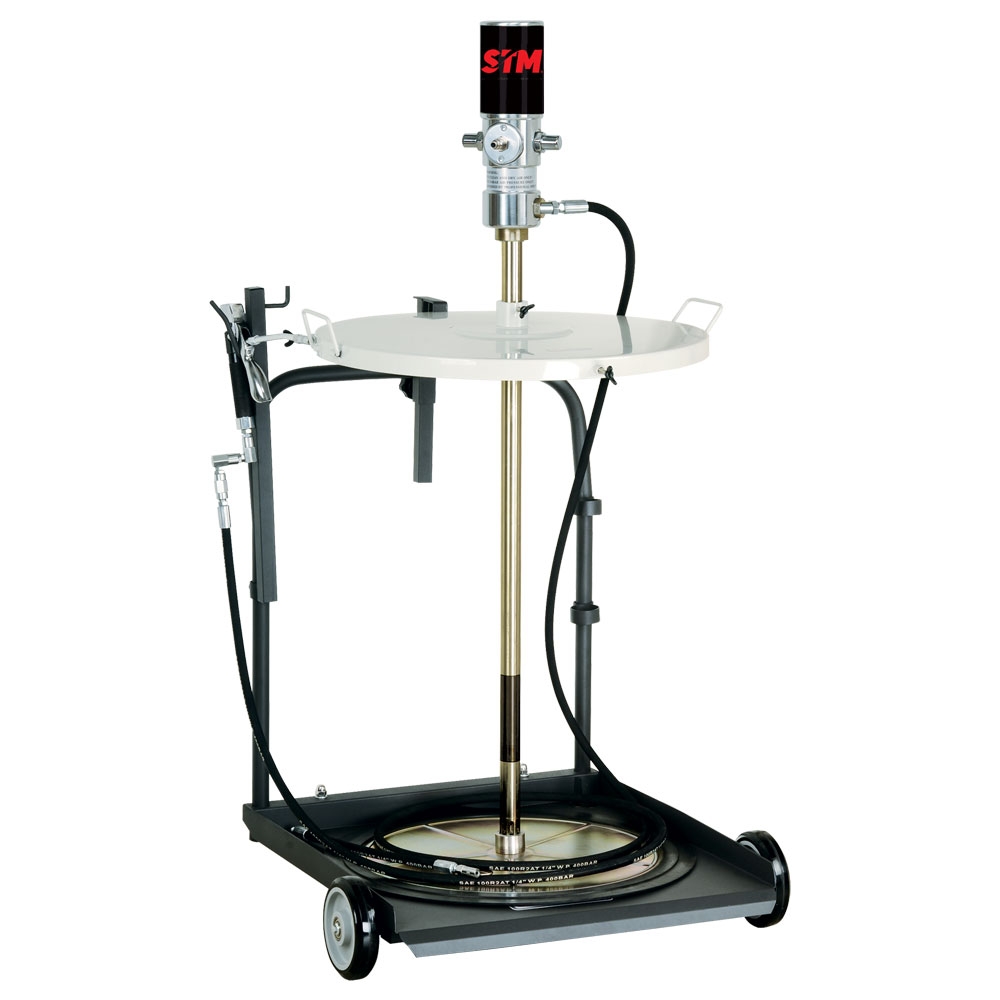

Portable Air Operated Grease Kit - 180Kg

Model: DITI1700536

  • Mobile kit for 180 kg drums
  • The complete combination for dispensing grease
  • Complete set of fluid transfer accessories gives the end user a trouble-free using experience
  • Standard model composed of 50:1 pump, trolley, follower plate and drum cover, 4 metres of ¼" connection hose, ‘Z’ swivel and control gun
  • Working pressure up to 8700psi

Standard unit consists of:

  • DITI1701503 pump
  • DITI1709006 drum cover Ø600mm
  • DITI1709016 follower plate Ø585mm
  • DITI1762213 hose ¼" x 4 metres
  • DITI1785702 ‘Z’ swivel ¼" BSP
  • DITI1785701 control gun ¼" BSP
  • DITI1708002 trolley

Data Sheets

Data Sheets

Pump Trolley Control Valve
