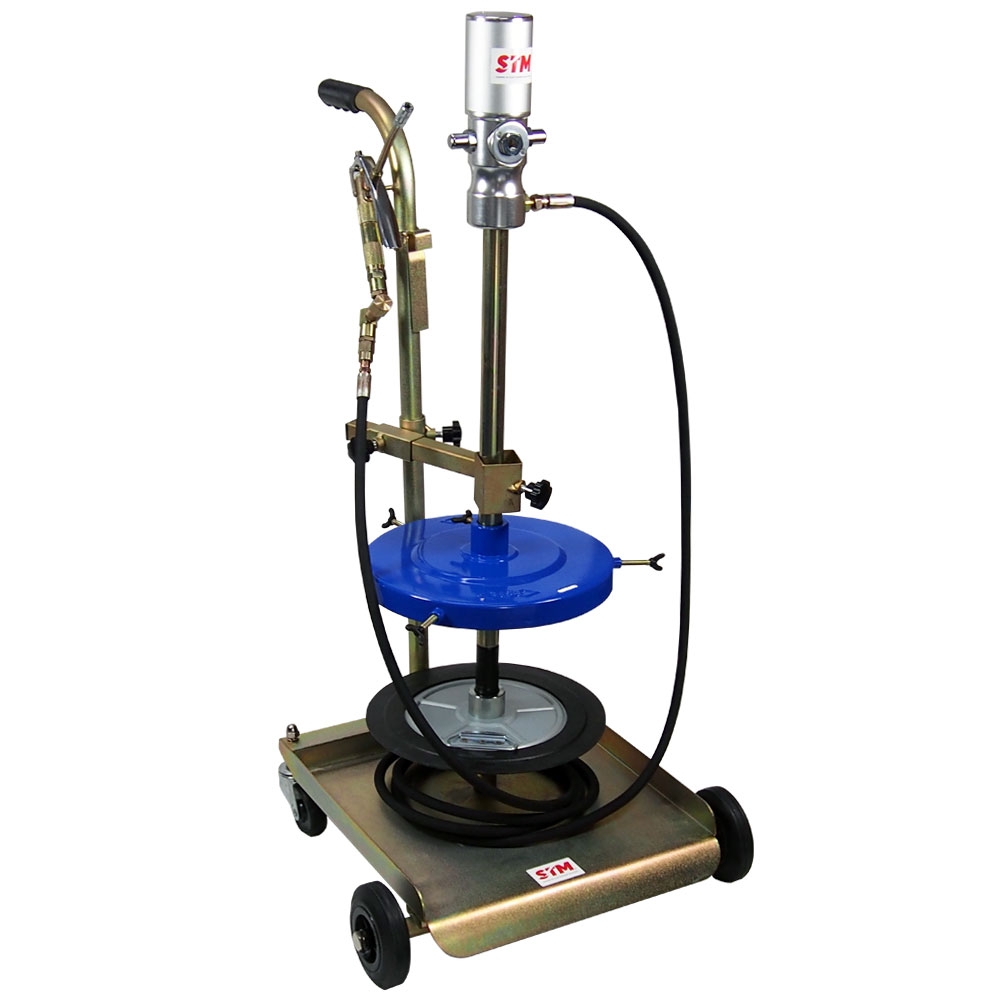

Grease Kit 20 Kg with 50:1 pump & Trolley

Model: GK2060

  • Mobile kit for 20 Kg drums
  • The complete combination for dispensing grease
  • Complete set of fluid transfer accessories gives the end user a trouble-free using experience
  • Standard model composed of 50:1 pump, trolley, follower plate and drum cover, 4 metres of ¼" connection hose, ‘Z’ swivel and control gun

Pump

Compression radio
50:1
Air Inlet connection
¼” Quick plug
Oil outlet connection ¼”MBPS
Working Pressure
8 bar/116 PSI
Max. Flow pressure
400 bar/5,800 PSI
Air consumption
120L/min
Relative capacity
800g/min
Suction tube length
30mm



Standard unit consists of:

  • Grease Pump
  • Drum Cover
  • Hose with fitting
  • Follower Plate
  • Trolly
  • Grease Control Valve (GGR843)
  • Z swivel(GZS320)
