Seal Kit 5:1 High Volume Oil Pump

Model: DITI171305SK

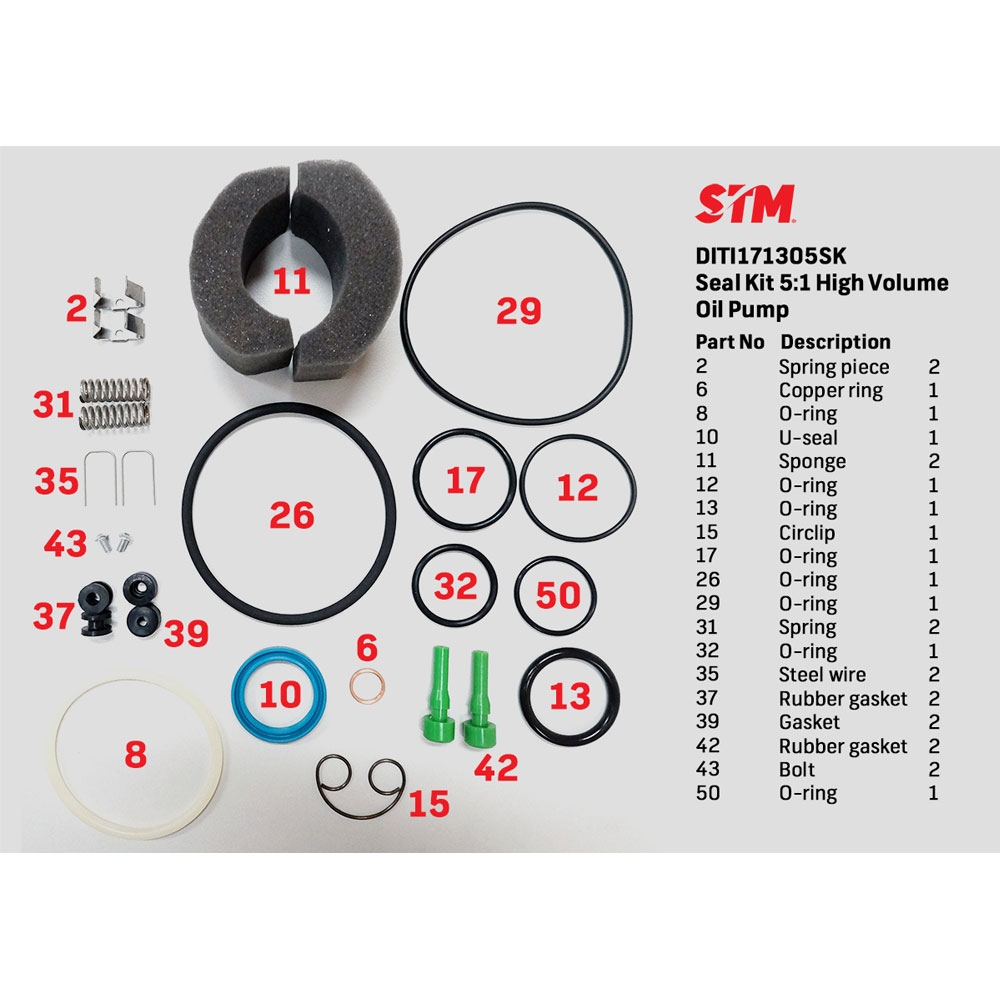

DITI171305SK Seal Kit for 5:1 High Volume Oil Pump includes:

No Description Qty
2 Spring piece 2
6 Copper ring 1
8 O-ring 1
10 U-seal 1
11 Sponge 2
12 O-ring 1
13 O-ring 1
15 Circlip 1
17 O-ring 1
26 O-ring 1
29 O-ring 1
31 Spring 2
32 O-ring 1
35 Steel wire 2
37 Rubber gasket 2
39 Gasket 2
42 Rubber gasket 2
43 Bolt 2
50 O-ring 1

Specifications

Specifications

Seal Kit for DITI171305015 5:1 High Volume Oil Pump
