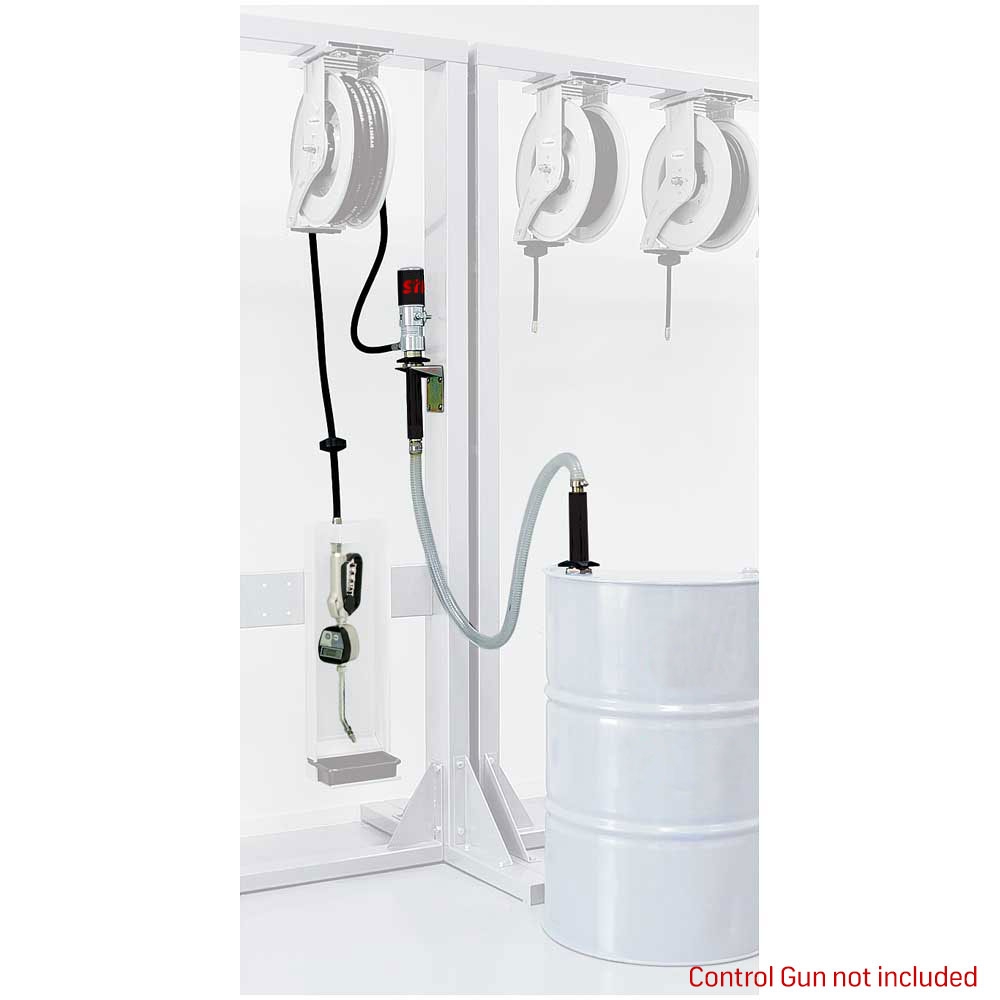

Air Operated Wall Mounted Pump Kit

Wall mounted kit to empty reservoirs

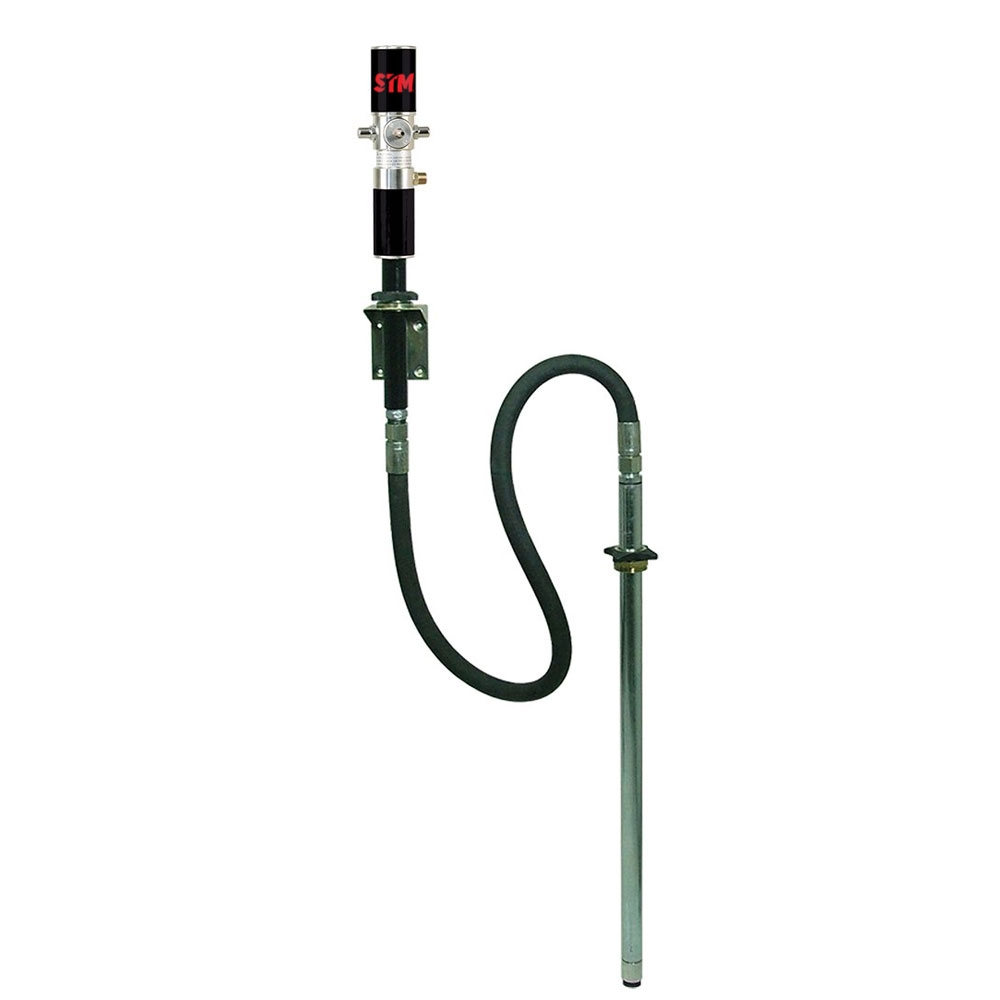

Comprised of pump, wall bracket assembly kit, suction hose, tube with foot valve and strainer
Suitable for dispensing oil to mobile installations with optional hose and nozzle or directly through hose reels
Supplied with all required fittings and accessories for connection of pump to the air and from tank to pump
Rigid suction tube with 2 metre hose assembly
1:1 pump DITI1701001 handles oils up to SAE 120 (Not suitable with reel)
To make suction tube longer use DITIET10200 or DITIET10500 in conjunction with DITIET10001 and DITIET10003
If longer suction hose is required then will need DITIWB10004, DITIWB10002, hose clips YS295040 and hose DITIPVC32
Also availabe: 3:1 ratio wall mounted pump kit (DITI1700211) and 5:1 ratio wall mounted pump kit (DITI1700311)
Equipped with lubricator, which must be fitted, otherwise warranty will be void

Specifications

MODEL	DITI1700111	DITI1700211	DITI1700311
Drum application	Wall mounted	Wall mounted	Wall mounted
Pressure ratio	1:1	3:1	5:1
Working pressure	20 - 115psi	20 - 115psi	20 - 115psi
Air consumption	@115psi 3.6 CFM	@115psi 3.9 CFM	@115psi 4.5 CFM
Max free flow rate	18 LPM	12 LPM	14 LPM
Suction tube diameter/ thread	42mm	42mm	42mm
Suction tube length	95mm	270mm	270mm
Air inlet connection	¼" BSP Female	¼" BSP Female	1/4BSP Female
Oil outlet connection	½" BSP Male	½" BSP Male	3/4 BSP Male
Maximum SAE viscosity	SAE 120	SAE 150	SAE 240

Pump Manual Available

Part Number

DITI1700111

DITI1700211

Pressure ratio

1:1

3:1

Pump
