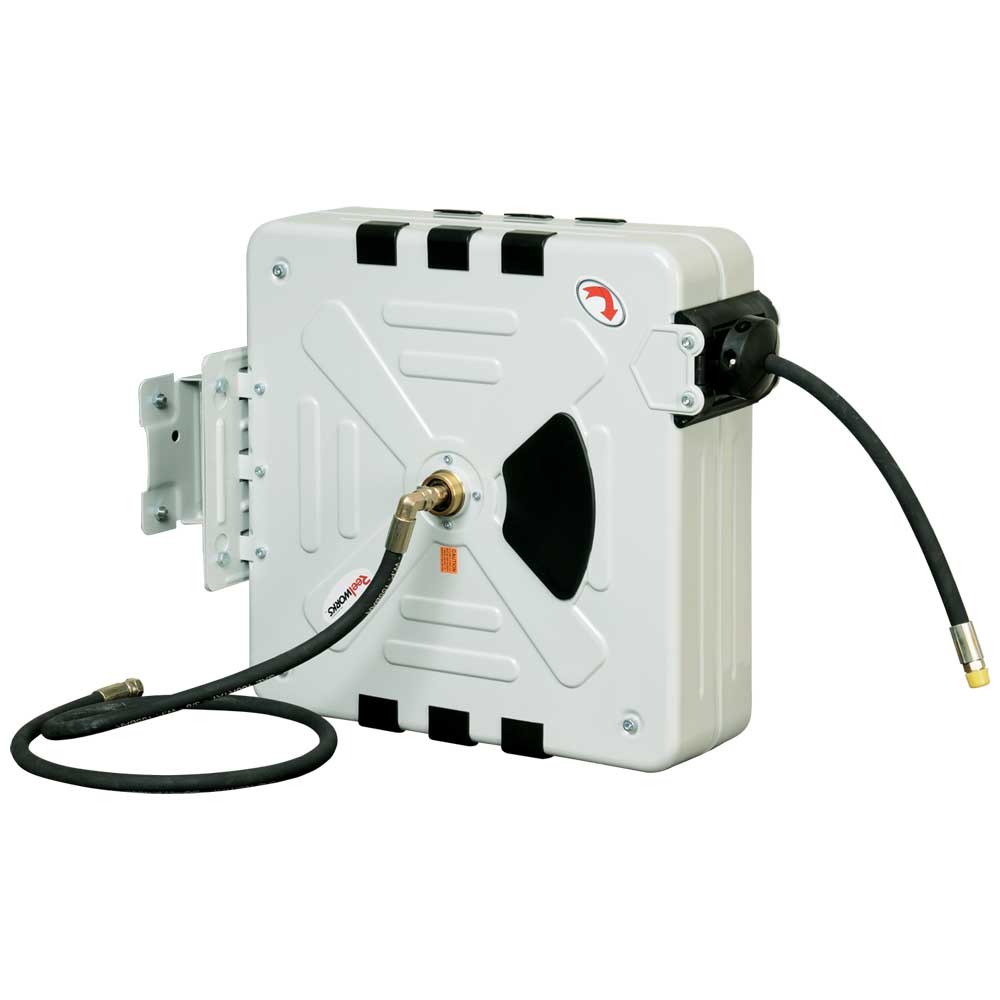

Heavy Duty Enclosed Hose Reels

• Heavy duty construction
• Designed to transfer oil, grease, water and air
• Compact size and easy installation
• Spring tension easily adjustable from the outside
• Four direction non-snag rollers reduce hose wear abrasion
• Mounting bracket can be repositioned for varied application
• 110° Swivel Base - Wall & Floor
• 180° swivel





Specifications

Specifications

MODEL

DITI29508154OR

DITI29508154R1

DITI29509152R2

Application

Air/Water

Oil

Grease

Inlet/Outlet fitting

3/8"BSP F/
3/8" BSP M

1/2" BSP F/
1/2" BSP M

1/4" BSP F/
1/4 BSP M

Maximum Pressure

300psi

2000psi

5000psi

Hose I.D / H CapacitySAE

Rubber 3/8"

SAE 100 R1 1/2"

100 R2 1/4"

Hose Length

15 meters

15 meters

15 meters
