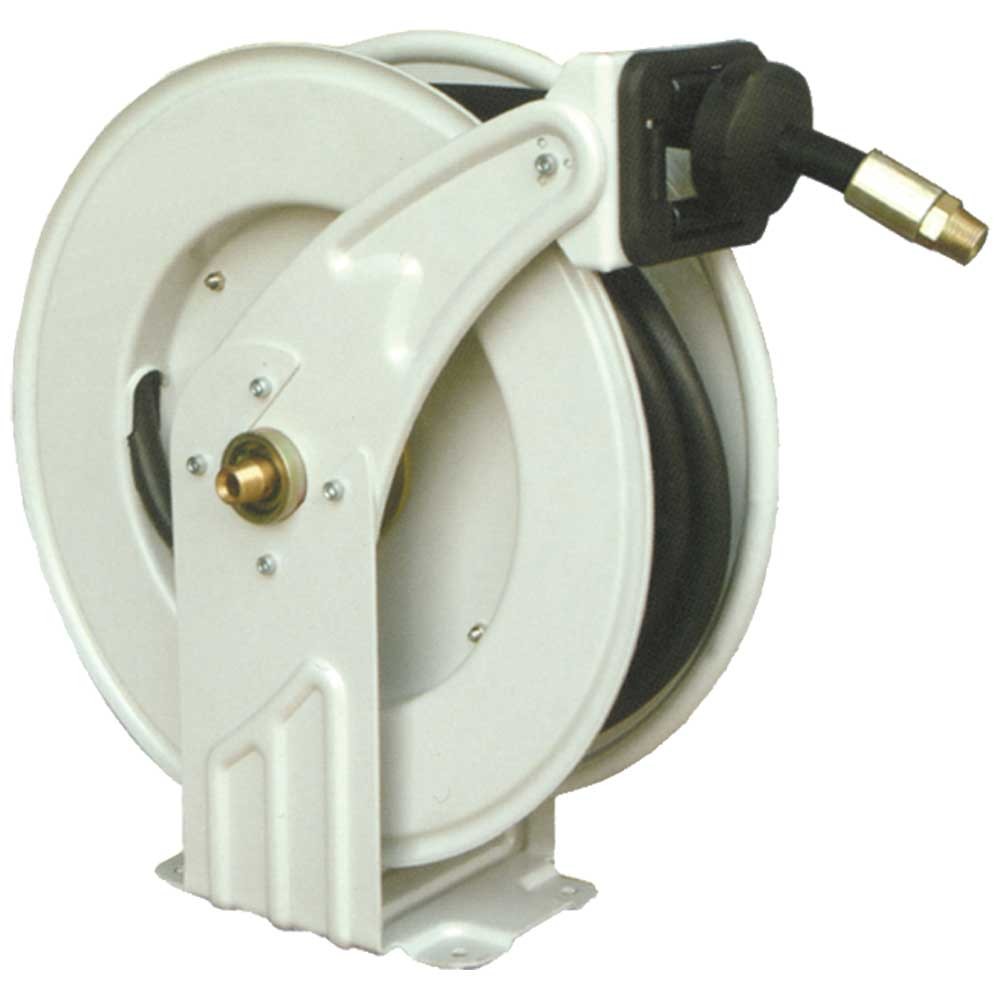

Heavy Duty Hose Reels

• Dual pedestal steel hose reel
• Simple construction for easy installation
• Spring locates in the middle to ensure stability of the reel
• Four-direction non-snag hose rollers reduce hose wear
• Adjustable arm guide (wall, floor, ceiling, and pit)
• Elegant appearance
• Special swivel joint for easy maintenance and repair
• Ball bearing swivel joint structure, largely reducing the friction between swivel spool and swivel body

Specifications

Specifications

MODEL

DITIH860152

DITIH860153

DITIL860153

DITIM860154

Application

Grease & oil

Grease

Air & water Oil & water

Inlet/Outlet Fitting

¼"

⅜"

⅜"

½"

Maximum pressure

5000psi

4000psi

300psi 2000psi

Hose I.D

¼"

⅜"

⅜"

½"

Hose length

15 meters

15 meters

15 meters 15 meters
